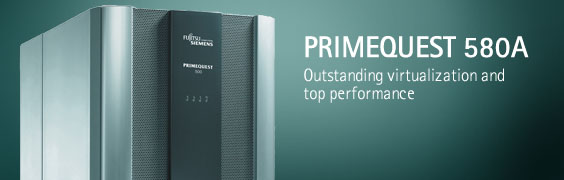

| | PRIMEQUEST 580A offers flexible and scalable configuration capabilities for up to 32 Dual-Core processors and belonging I/O resources in a space-saving system cabinet. Automatic reconfiguration and flexible partitioning with up to 16 fail-safe, hardware isolated partitions using eXtended PARtitioning (XPAR) provide optimum resource usage with multiple OS instances. Red Hat Linux with Xen makes perfect the outstanding offering for PRIMEQUEST 580A in terms of virtualization.
The advanced system architecture incorporates two innovative key technologies that provide highest availability in a single system: |
| | |
Mirror Mode and Flexible I/O (FIO)
With Mirror Mode, crossbar interconnects and memory modules can operate in duplex mode to isolate faults without causing a system halt, i.e. not influencing the IT production. FIO allows on demand reallocation of I/O resources to specific processing resources, which enables I/O to match throughput and performance requirements.
Enhanced performance (compared to the predecessors) and reliability of the new Dual-Core Intel® Itanium® processor 9100 series with 1.66 GHz, large main memory capacities up to 2 Terabyte, high speed crossbar interconnect (up to 170 Gbyte/s throughput) and low memory latencies satisfy huge system and application bandwidth demands. |
| | |
| |
| Main features | Benefits |
- Industry standard processors
Dual-Core Intel® Itanium® processor 9100 series with 1.66 GHz and enterprise hardened standard open source OS Linux and Microsoft® Windows Server™ 2003 and 2008 together with mainframe class high performance and highly reliable server design
| - Leverage of Windows/Linux skills to mission critical datacenter operation
- Enhanced ROI by exploiting the fast growing IPF Eco-system offering a rich choice of proper applications
- Minimized service efforts through highest reliability
|
- System Mirror for live redundancy operations by: address-, data-, LAN- and Management fault immunity
Additional redundant components
| - Industry standard ecosystem, lifted to mission critical operations
- Continuous IT-production through enhanced system-uptime
- Highly improved service-level satisfaction
|
- Outstanding and safeguarded flexibility through:
Up to 16 (with XPAR) hardware isolated, reconfigurable partitions Linux and Windows operability in parallel
Variable resource combination in the event of changing demands as well as reacting on occurring failures
| - Supports ever increasing needs for business agility due to the ability of a fast adaptation to planned or unplanned change-requests
- Flexibility to run the most appropriate operating system for applications having invested into
|
| |
| |
 | | | |
